What's WB-II G

Detective element is made of Zirconia electrolyte.

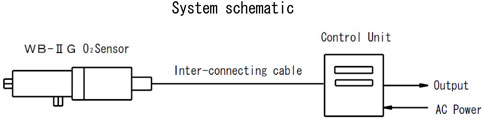

* The sensor works as oxygen analyzer together with the control unit.

Boiler, Steel heating furnace, Glass fusion furnace, Ceramic sintering furnace, Waste heat plant, All burning exhaust gases.

SPECIFICATIONS

Measuring range	-20 ~ 25%
Linearity	Less than ±1% FS (0-25%O2)
Repeatability	Less than ±1% FS (0-25%O2)
Response	90% reading 10sec. (Swinging to a high density side)
Drift	Less than ±2％FS/week
Sample suction	With aspirator block, Guide probe
Sample pressure	0±5Kpa (It depends on accessory)
Sample Temp.	300°C MAX. (Sensor part)
Warm up time	About 20 minutes
Option	Rain protector

*For the improvement, the specification and design may be changed without prior notice.
