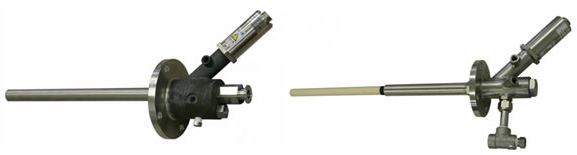

Aspirator block Introduction

The aspirator block is a suction equipment of the sample gas.
It combines with the sampling probe as the sample introduction pipe.
At first TB-IIG sensor should be screwed into the sensor port.
It is installed in the short-pipe and the flange which was built in the measuring point and introduce air. Then the sample gas is sucked from the tip of probe.
There are two ways to emit the sample gas. The one is to release to the atmosphere, the other is to return into the furnace. And it is possible to select them according to the facilities. It is possible to install at the level - the vertical angle.
* Please consider about the length of short-pipe so that the temperature of the sample gas is less than 350°C in the sensor installation point.
