  • THERMAL MICROSCOPE-ARTCAM-320-THERMO-MICRO
THERMAL MICROSCOPE
ARTCAM-320-THERMO-MICROUSB2.0
SPECIFICATIONS
PDF Catalog
PDF file		 thermal imaging camera
Magnification 4.00x/3.10x/2.35x/1.25x
Zoom type : 0.25x - 0.8x
Sensor Uncooled Microbolometer (Built in peltier device)
Detected Wavelength 8 - 14um
Effective Pixels QVGA 320(H)x240(V)
Pixel Pitch 23.5μm
Temperature Range 0～300°C
Frame Rate 30 fps
Interface USB2.0
Output 14 bit digital output
Power DC12V
*We might change product's specifications without announcement. Sorry for inconvenience in advance.

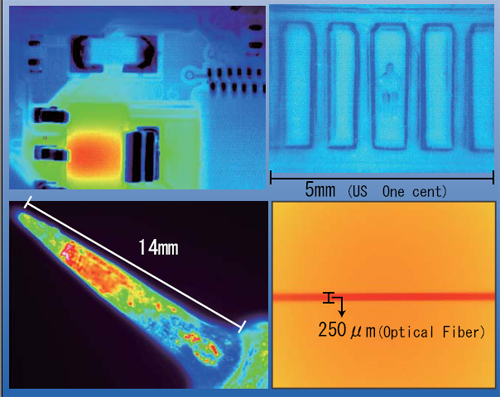

SAMPLE IMAGES
sample images(Black body)
