NATURAL LIGHT LED


This model precisely reproduces the true, limitless colors of the objects being lit. This capability is often taken for granted, but we have incorporated its highly refined technologies into this LED light. Our original “Natural Light LED,” which precisely reproduces natural sunlight, achieves“Ra98”(Correlated color temperature: 5000 K) out of a maximum 100 on the “average color rendering index,” a standard index of color reproducibility. This is the highest level ever attained in the industry. This high rendering achieves subtle color expressions that were considered impossible with conventional LED lights. Representative value: CRI Our LED lights are manufactured entirely in Japan, based on quality management that has been called the most stringent in the industry. As a reflection of their superior accuracy and quality, these products have been adopted in precision machinery testing equipment and various other industrial devices.

This high reliability has earned we the top share in the industrial lighting field. Our unparalleled technologies and quality, along with its extensive track record, have earned the company an outstanding reputation throughout the world.

COMPARISON OF LIGHTING SAMPLES


	Close to natural sunlight; offers outstanding reproducibility of any colors



Strong bluish tint overall; insufficient color reproduction	Emphasizes specified colors (e.g., green and violet); insufficient color reproduction

As shown in the sample comparison above, white LED lights, which is the current the mainstream, have a strong bluish tint, and in the case of standard fluorescent lights, specified wavelengths are more pronounced, so neither are suited to reproducing the true colors of the objects being lit. The spectral distribution of CCS’s Natural Light LED is extremely close to that of natural sunlight, so these LEDs can generate light that is ideally suited to reproducing the colors of the objects being lit.

What are "color rendering properties"?

"Color rendering" refers to the way that a lamp or other light source affects the way that an object's color is seen. The characteristics of the light source are called "color rendering properties." Generally, when a light source has good color rendering properties, it means that
it can light objects without changing their natural colors. The maximum
value on the standard color rendering index is 100.

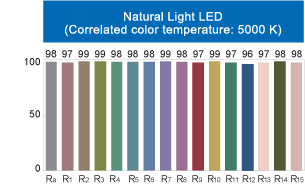

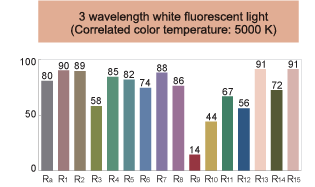

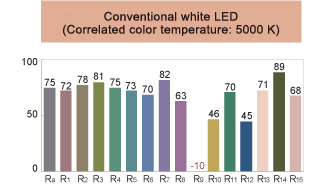

Color rendering indexes for 14 colors (max. = 100)

*Average color rendering index Ra: Average of R1 – R8

*Special color rendering index: Index for all colors from R1 to R14

Lamps used to light up paintings and photographs must reproduce colors precisely, and prevent fading. The Natural Light LED with ultra-high color rendering precisely reproduces the true colors of the items on display.
Because these LEDs give off almost no ultraviolet or infrared light, fading and deterioration of colors in artwork and ornaments are kept to a minimum. The lights can also be installed close
to the objects being lit.

	For art museums, art galleries, photo galleries, and other locations that demand accurate reproduction of the artist's sophisticated color expressions.

	At retail outlets selling products for which "color is everything" (leather goods, accessories, cosmetics, etc.)
Photographs represent typical installations.

Four sizes (lengths), with optional cables for continuous
connections*1. These lights can be installed flexibly in shelves of various sizes. Customized production is also available for special sizes not included in the current product lineup*2.

*1 Each AC adaptor allows continuous connection of light units with total power consumption of up to 60 W.
*2 For customized product requests, please consult a CSS sales representative.

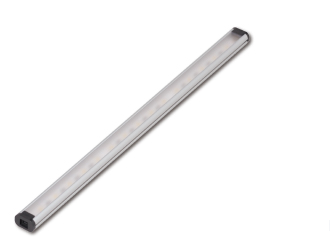

The tireless pursuit of functionality has resulted in a compact design that is only 12 mm thick. The refined
design of the Compact LED Line Light does not detract from the mood of
the space in which it is used.

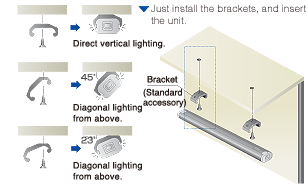

LED To install the Compact LED Line Light, simply fix the unit to the shelf with screws. Light units can be put to use immediately after purchase. Because they use a household power source (AC100-240V), they can be plugged into a standard electrical outlet.


Use magnets to attach light units to steel shelves.	Using this 180° adjustable fitting, the light unit can be installed at any angle.

DUE TO CONTINUOUS PRODUCT IMPROVEMENT, THE DESIGN AND
TECHNICAL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT PRIOR NOTICE
