| Ultrasonic Gas Module
|

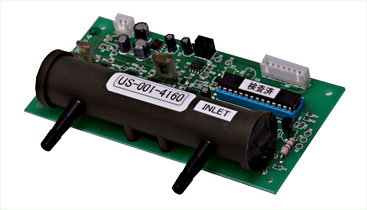

| US-100-5V |
US-100-5V is gas analyzer with ultrasonic sensor for detecting.
This gas module output analog voltage by measuring sound-speed and temperature of mixed two sorts of
gases. |
 |
FEATURES
- LONG LIFE
- EASY TO INSTALLATION
- ONLY 10 SECOND FOR WARM-UP
- SAVE ENERGY
|
SPECIFICATIONS
| Warm-up Time |
About 10sec. |
| Sample Temp. |
Normal temperature (40°C max) |
| Sample Pressure |
0 ~ +5kPa |
| Flow Rate |
0.5 ~ 5.0L/min |
| Power Supply |
Less than ± 0.1V of DC +5.0V |
| Ambient Temp. |
5 ~ 45°C |
| Piping |
IN OUT : tube of Φ 5 ~ 6.5mm in inside diameter |
| Analog Output |
D.C. 0-1V |
| Lineality |
Less than ±2% of full scale |
| Repeatability |
Less than ±2% of full scale |
| Response Time |
90% reading is within 10sec. |
|
| *As is often the case with changing this specification for improvement without permission. It is theoretically possible for US-100-5V to analyze some mixed sorts of gaes. |
Click here for PDF formatted data-sheets. |
